Solar True Hybrid Wall Mounted

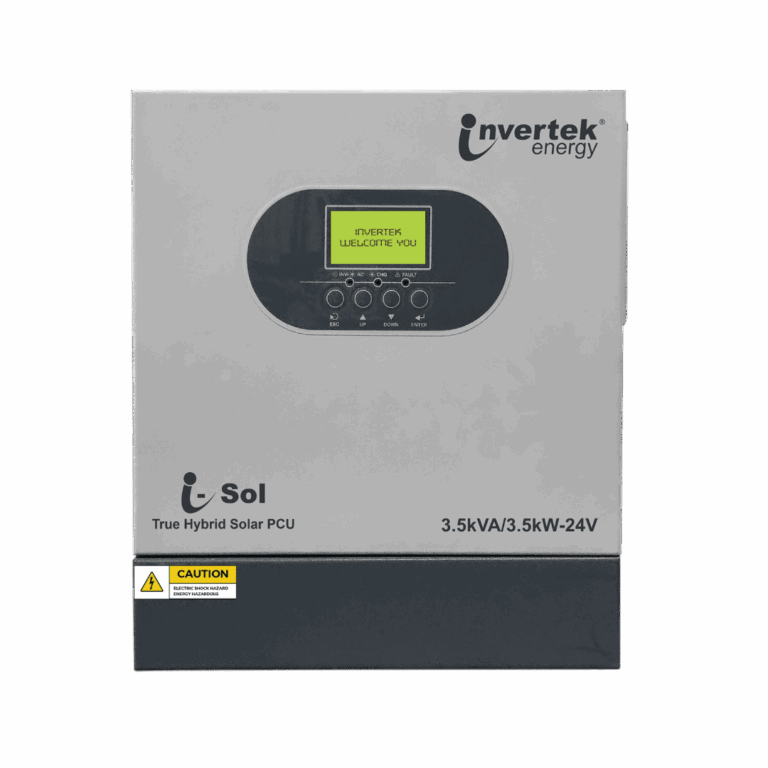

The i-Sol Solar True Hybrid Wall Mounted Inverter for Modern Indian Homes
This is the most advanced solar inverter Invertek has ever built.
The i-Sol is a solar true hybrid wall mounted unit that works on-grid, off-grid, and grid-tie with backup simultaneously.
It mounts cleanly on the wall like an AC unit.
No floor space. No clutter. No compromise.
Built-in 100A MPPT controller. Wi-Fi monitoring. Grid export ready. Parallel up to 12 units.
Available in 3.5KVA and 6.2KVA. Direct manufacturer warranty.
i-Sol IE3.5KVA-24V
- Self-consumption and Feed-into the Grid
- Programmable multiple operation modes: Grid-tie, Off-Grid and Grid-tie with backup.
- Back-flow prevention via external CT sensor and grid connection function.
- Parallel operation up to 12 units in 1 phase.
- Direct Plug Wi-Fi Dongle Supported.
- Output power factor 1.0
- High PV input voltage range 500Vdc Max.
- Built-in MPPT solar controller 100A.
- Wi-Firemote monitoring optional.
- Detachable dust cover for harsh environment.
- User-adjustable charging current and voltage.
- Programmable supply priority for PV, Battery or Grid.
- Support multiple output priority: SBU/SUB/SUF/ZEC.
- EQ function to optimize battery performance and extend lifecycle
Model: IE3.5KVA-24V
Rated Power : 3500VA/3500W
DC Input: 24VDC, 157A
AC Input : 230VAC, 50/60HZ, 1PH
i-Sol IE6.2KVA-48V
- Self-consumption and Feed-into the Grid
- Programmable multiple operation modes: Grid-tie, Off-Grid and Grid-tie with backup.
- Back-flow prevention via external CT sensor and grid connection function.
- Parallel operation up to 12 units in 1 phase.
- Direct Plug Wi-Fi Dongle Supported.
- Output power factor 1.0
- High PV input voltage range 500Vdc Max.
- Built-in MPPT solar controller 100A.
- Wi-Firemote monitoring optional.
- Detachable dust cover for harsh environment.
- User-adjustable charging current and voltage.
- Programmable supply priority for PV, Battery or Grid.
- Support multiple output priority: SBU/SUB/SUF/ZEC.
- EQ function to optimize battery performance and extend lifecycle
Model: IE6.2KVA-24V
Rated Power : 3500VA/3500W
DC Input: 48VDC, 157A
AC Input : 230VAC, 50/60HZ, 1PH
More info.
India’s Smartest Wall Mounted Solar Hybrid Inverter Has Arrived
Solar inverters in India have always been bulky, floor-mounted units.
They take up space. They need separate wiring. They look industrial in a home setting.
The i-Sol solar true hybrid wall mounted inverter changes all of that.
It mounts flush on your wall.
Slim. Clean. Modern.
It looks and installs just like a split AC unit.
But the design is just the beginning.
What makes the i-Sol genuinely different is how it manages your energy.
It is a true hybrid system in every sense of the word.
It operates in three modes simultaneously based on what is available.
Grid-tie mode feeds surplus solar energy back into the grid.
Off-grid mode keeps your home running purely on solar and battery when the grid is down.
Grid-tie with backup mode combines all three sources for uninterrupted power at the lowest possible cost.
You can programme which energy source gets priority at any time.
Solar first. Battery first. Grid first. Or zero export to the grid using back-flow prevention via CT sensor.
The built-in 100A MPPT solar charge controller accepts PV input voltage up to 500V DC.
This means you can connect a large solar panel array directly without any external charge controller.
Maximum solar harvesting from every panel at every hour of the day.
Wi-Fi monitoring is built in as standard.
Track your solar generation, battery status, grid consumption, and power flow from your phone in real time.
Output power factor of 1.0 means every watt the inverter delivers is usable power.
No reactive power loss. No wasted electricity.
The EQ equalisation function automatically optimises battery performance and extends battery lifecycle over time.
Need more capacity as your home or business grows?
Up to 12 units can be connected in parallel on a single phase.
Scale your solar system without replacing any hardware.
The detachable dust cover protects the unit in harsh environments.
Especially important in Indian conditions where dust and heat are daily challenges.
Available in 3.5KVA 24V and 6.2KVA 48V configurations.
Compatible with all battery types including LiFePO4 lithium for a fully zero-maintenance solar setup.
ISO 9001:2015 certified. Made in India. Direct manufacturer warranty.
100 plus authorised service partners across India.
24 to 48 hour service resolution guaranteed.
Contact us today to get the right i-Sol configuration for your rooftop solar system.
